Hickson 92/Arp 319 - Stephan's Quintet

| 4 Comments
Sketch of Stephan's Quintet (Hickson 92 / HGC 92 / ARP 319) - OCT 21, 2009

Sketch of Stephan's Quintet (HGC 92 / ARP 319)

Move mouse over sketch above to view labels
Click image for larger version.

Observation Notes

This is a tough observation from home. The soft patches flickering in the vicinity of the cluster were frequent, but difficult to pin down. NGC 7318 and 7320 were the most readily visible. I actually picked up a few episodes of condensation in the western half of NGC 7318. NGC 7319 was very difficult--it made about a 150 degree angle with the two stars to the north and about the same distance as the two stars are from each other. NGC 7317 was difficult in its own way, bound closely to a distracting star. But it consistently flickered into view, separating itself just to the southeast of that star.

Sketch/DSS Photo Comparison of Stephan's Quintet (HGC 92 / Arp 319)

Sketch/DSS Photo Comparison of Stephan's Quintet (HGC 92 / Arp 319)

Object Information:

Stephan's Quintet was at the center of a debate about the validity of galactic redshifts as a means of determining distance to objects and structures in the universe. Photographic images of the galaxies clearly show some of them to be interacting gravitationally with each other, pulling tails of debris from each other. Furthermore, 4 out of 5 of the galaxies have a similar redshift of 6000 km/sec. NGC 7320, however, has a much smaller redshift of 760 km/sec. Some have pointed to debris and tails around NGC 7320 as evidence that it must be a member of the group of galaxies, so the difference in redshift couldn't be a reliable indication of distance in the universe. However, recent imaging by the Hubble Space Telescope revealed individual stars, clusters and nebulae in NGC 7320 that wasn't visible in the other galaxies, thus placing it much closer than the other galaxies, in agreement with its redshift value.

SubjectNGC7317, NGC7318A, NGC7318B, NGC7319, NGC7320 - Stephan's Quintet / Hickson 92 / Arp 319
ClassificationNGC 7317: Elliptical (E2)
NGC 7318A: Elliptical (E2)
NGC 7318B: Barred Spiral/Peculiar (Sb/P)
NGC 7319: Barred spiral (Sb)
NGC 7320: Spiral (Sc)
Position*Pegasus:
NGC 7317: [RA: 22:35:51.9 / Dec: +33:56:41]
NGC 7318 A and B: [RA: 22:35:58.4 / Dec: +33:57:57]
NGC 7319: [RA: 22:36:03.5 / Dec. +33:58:33]
NGC 7320: [RA: 22:36:03.4 / Dec. +33:56:54]
Size*NGC 7317: 1.1' x 1.1'
NGC 7318 A and B: 1.2' x 1.0' (PA 5°)
NGC 7319: 1.7' x 1.3'
NGC 7320: 2.2' x 1.1' (PA 132°)
Magnitude*NGC 7317: 13.9 vMag / 14.8 bMag
NGC 7318 A and B: 13.4 vMag / 14.4 bMag
NGC 7319: 13.8 vMag / 14.4 bMag
NGC 7320: 13.1 vMag / 13.6 bMag
Date/TimeOCT 21, 2009 - 11:15 PM
(October 22, 2009 - 06:15 UT)
Observing Loc.Flagstaff, AZ - Home
InstrumentOrion SkyQuest XT8 Dobsonian (203 mm dia./1200 mm F/L)
Eyepieces/Mag.Pentax XW10 + 2X Barlow (240X)
ConditionsClear, calm, cool
Seeing5/10
TransparencyMag 6.0 NELM
*SourcesSEDS;Skyhound Archives; NOAO; NGCIC.org; DSS

SEP 30, 2005 OBSERVATION:

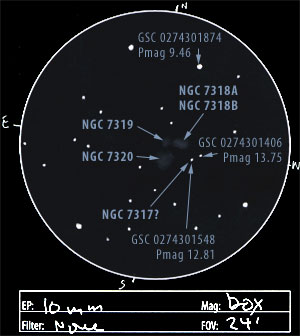

Sketch of Stephan's Quintet (Hickson 92 / HGC 92 / ARP 319) - SEP 30, 2005

Sketch of Stephan's Quintet (HGC 92 / ARP 319)

Move mouse over image to see labels

Sketch of Stephan's Quintet (Hickson 92 / HGC 92 / ARP 319) - SEP 30, 2005

Sketch of Stephan's Quintet (HGC 92 / ARP 319)

Move mouse over image to see photographic overlay of Stephan's Quintet.
Rollover photograph courtesy of: N.A.Sharp/NOAO/AURA/NSF

Observation Notes:
Ah yes, Stephan's Quintet. I've had a goal of seeing this enticing collection of galaxies ever since I first saw it through Bill Ferris' 10" reflector. I remember thinking how faint the galaxies were through the scope at the time, and being pretty satisfied that I was able to make out all 5 of them. Over the past year, I hoped that my observing skill had improved enough to have a slim chance of seeing them in my 6" scope.

After a fantastic evening observing with my family at the Cinder Hills Overlook site at Sunset Crater National Monument, the family went home to get some shuteye. I decided to give this galaxy cluster a try. I had tried to find them from my front yard the week before, but that search ended in utter failure. This time I had fantastic skies to work with. I also had the precise location printed out for reference. The galaxies would be located in the southern quadrant of a keystone-shaped asterism of stars. As I pored over this view in the eyepiece, that region of the asterism gradually revealed itself to be a bit lighter than the surrounding field, and somewhat mottled. It took a lot of searching, deep breathing, and concentration to slowly discern the faintest hints of soft light that were hovering in and out of visibility.

The first patch of light to give itself up was the southern soft oval in the sketch, NGC 7320. The next to reveal itself was a smaller, western oval of light that turned out to be the combined form of NGC7318A and NGC7318B. I made a note in my journal that this smudge seemed to split in two on a couple occasions, but not consistently enough to confirm. Whatever ;) Finally I got the very slimmest hint of a soft smudge northeast of the first two sightings. This one was harder to pin down, but something was there, and it turned out to be NGC7319. I did not pick up on NGC 7317, but I did plot a star at its position (GSC 0274301548). If I had any chance of picking up this galaxy by itself, the 12th magnitude star apparently outshone it enough to hide it from my prying eyes. I didn't plot every star I saw, mostly enough to verify the sighting later. The faintest I plotted was GSC0274301406 with a photographic magnitude of 13.75.

This was a very tough observation--on par with the Horsehead Nebula observation, but it was really rewarding to have spotted members of this unique cluster of galaxies.

Eric Graff observed and sketched all five members of Stephan's Quintet with a 6" f/6 newtonian. It was one of the things that helped motivate me to give the observation a try in my 6" f/8 scope. The following link will take you to his sketch of Stephan's Quintet. Thanks Eric for the sketch and permission to post it here.

Jeff Medkeff provides a very interesting description of his experience sketching this galaxy cluster with a ten inch scope:Stephan's Quintet.

Date/TimeSEP 30, 2005 - 10:30 PM
(OCT 1, 2005 - 05:30 UT)
Observing Loc.Cinder Hills Overlook, Sunset Crater National Monument, AZ
InstrumentOrion SVP 6LT Reflector (150 mm dia./1200 mm F/L)
Eyepieces/Mag.10 mm Sirius Plossl (120 X)
ConditionsClear, calm, 48°F
Seeing~2-3/10
TransparencyMag 6.3 NELM (based on M33)

4 Comments

Hi Jeremy, nicely done on Stephan's Quintet. You're description (and sketch) jive very well with my own experience observing this elusive but fascinating target in a 6-inch scope. Keep trying for NGC 7317; it is certainly the most difficult of the group to spot but it can be accomplished.

Clear skies,
EG :-)

Eric,

Thanks much!

I should have mentioned in the report that your sketch and observation really helped motivate me (apart from innate stubbornness) to go after this group in my scope since it was done so well through yours. Now that I'm a bit more familiar with the tricky (to me) position of NGC7317 near that star, I hope to give it another shot and try to pick it out. Perhaps if the seeing is better than 2-3 Pickering, I might even see 2 condensations in NGC 7317 A and B. Thanks for the comment!

I must say I Love your art!! It has inspired me to get a new scope an SN 8AT by Meade. It's to see Stephan's Quintet. What a great drawing! Gives me the feeling of really looking back in time. Great Job!


JP

Thanks Johnny, I hope you enjoy the telescope. Depending on your sky conditions, Stephan's Quintet may turn out to be a pretty challenging observation. Let me know how it goes if you get a chance!

Jeremy
